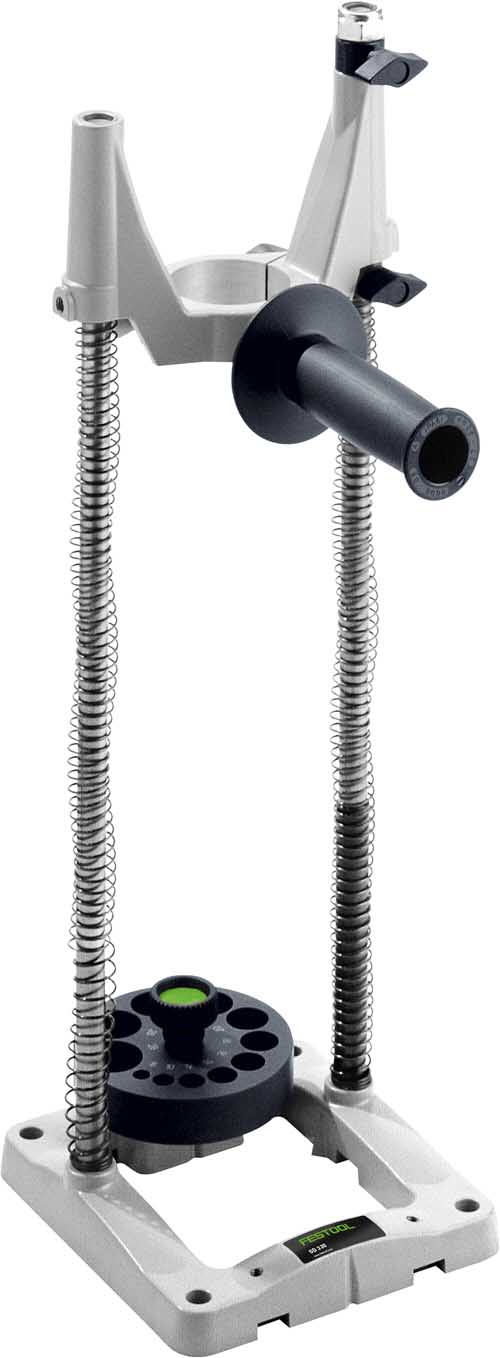

UPRIGHT OF DRIL GD 320

Main areas of use

• Used in wooden structures for precise bore holes with auger bits
• Use of auger bits up to max. 320 mm
• Maximum drilling depth of 240 mm
• Excellent guidance and safe operation through the auxiliary handle located on the carriage, optionally fixed in any of 3 positions
• Precise guidance of drill/borer/auger bits through the centering plate bushings; easily adjustable for various drill/borer/auger bit diameters
• Precise adjustment of the drill depth due to the dual lockable depth gauges
• Able to fit any drilling machines with 57 mm or 43 mm #d# collar attachment using the adapter ring included as a standard accessory
• Easy movement thanks to precise guide rods and bronze slide bearing in the guide block
• Positive stability due to the square base plate with precision-milled supporting surface

Items included
centering plate for drill bits ø 8–26 mm, 2 x depth stop, 2 x parallel side fence, adapter ring ø 57 mm / 43 mm, in carton

Warranty all-inclusive
